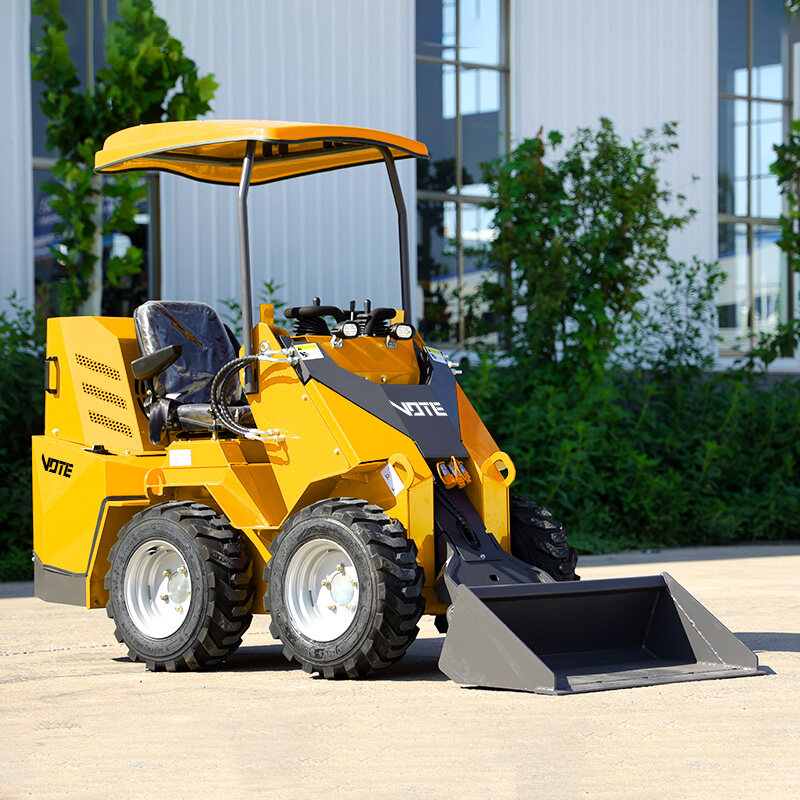

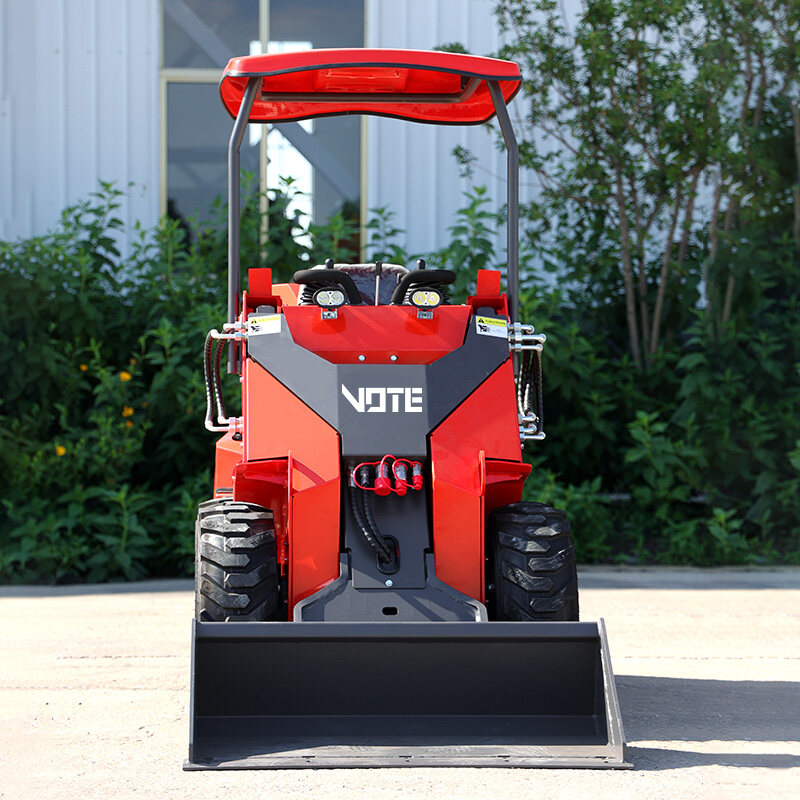

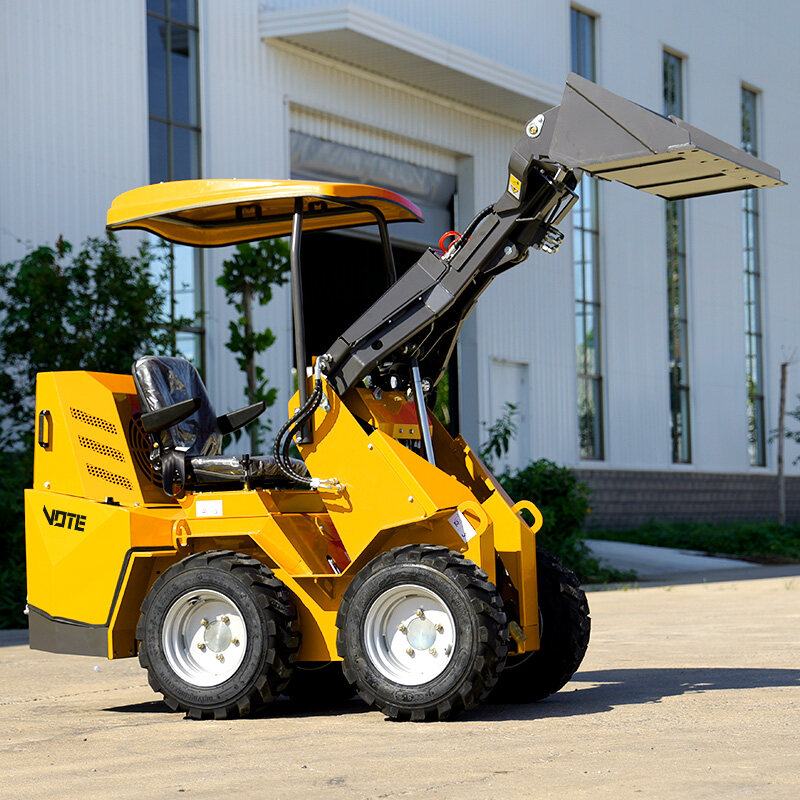

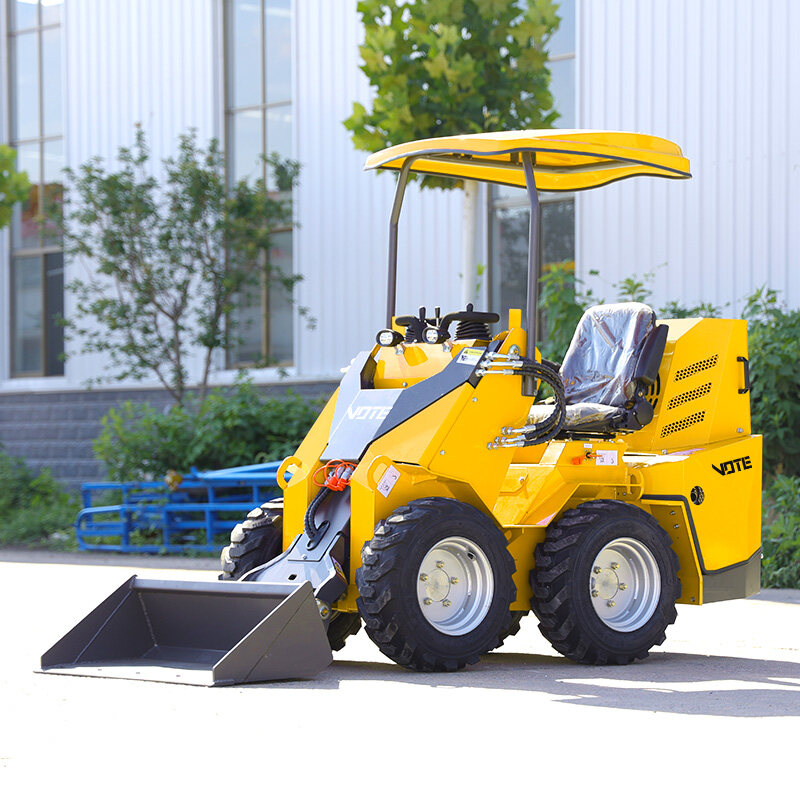

The biggest feature of the Vote skid steer loader is its small size and ability to turn on the spot; it can quickly replace or attach various working devices at the work site. Since its minimum turning radius is less than half of that of an articulated loader of the same level, it is particularly suitable for operations in narrow places such as urban infrastructure, roads or construction sites, factory workshops, warehouses, docks, ship decks and even cabins.
our Advantages
Product Details
Accessories
Product Parameters
Characteristic
Rated loading weight
560 kg
Bucket capacity
0.15 m³
Rated pressure
17 Mpa
Fuel tank
26L
Engine oil
1.7L / 1.6L / 3L
Hydraulic oil tank
23L
Engine
Engine model
Briggs&Stratton 3864 / Rato R420D / Koop KD2V80
Engine type
Gasoline / Gasoline / Diesel
Output power
23HP(3600rpm) / 23HP(3600rpm) / 20HP(3600rpm)
Fuel consumption
≤6.7L/h / ≤6.7L/h / ≤4.8L/h
Operating weight
920kg / 930kg / 950kg
Startup method
Electric start
Performance
Dimension
2646*1140*1867 mm
Max.lifting force
800 kg
Working speed
0-4.3 km/h
Gradeability
30%
Lifting time
4.5s
Bucket lowering time
3.1s
