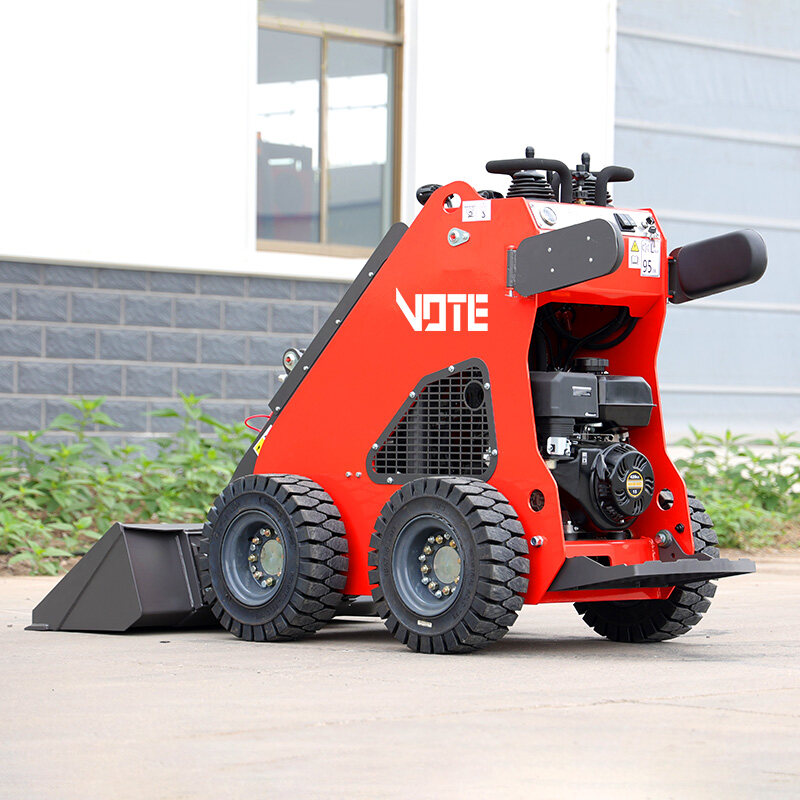

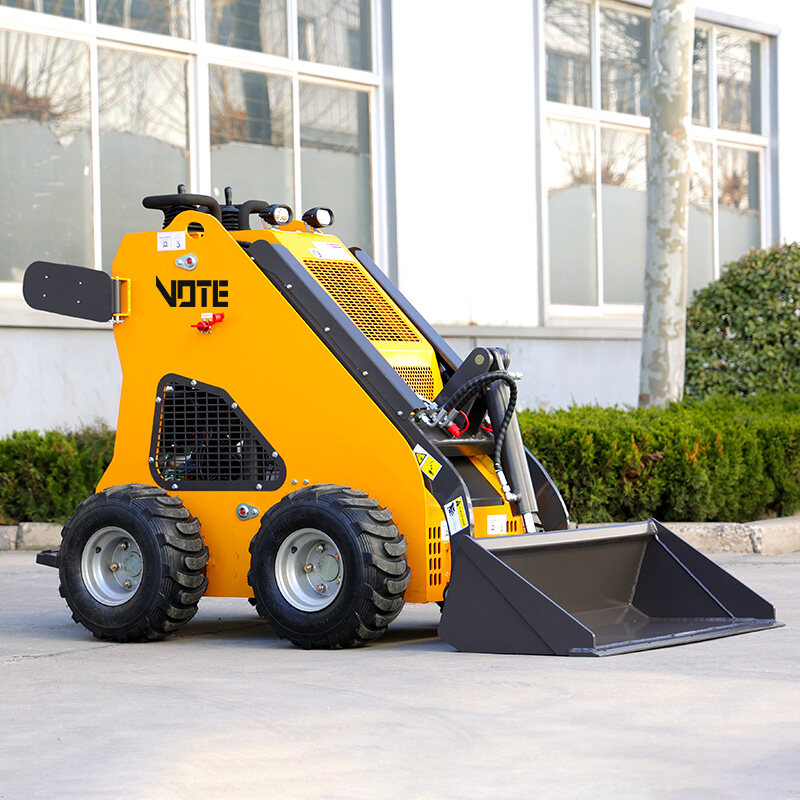

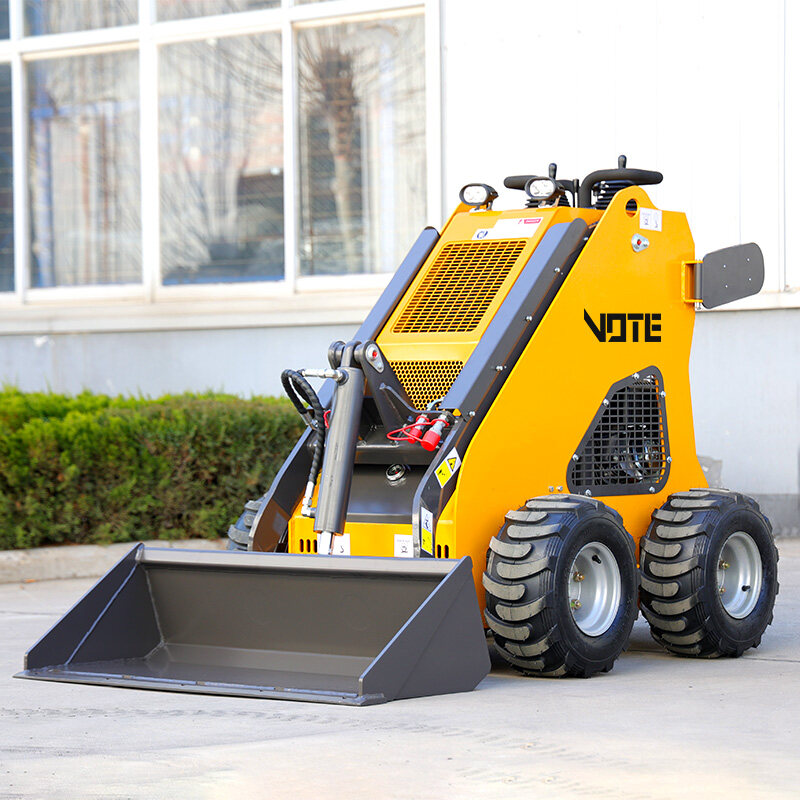

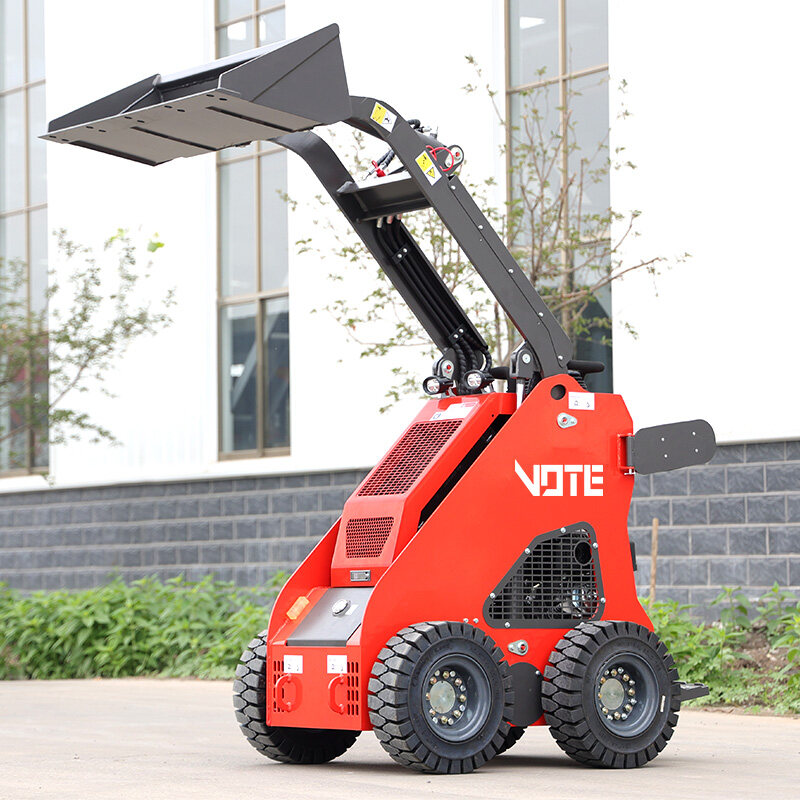

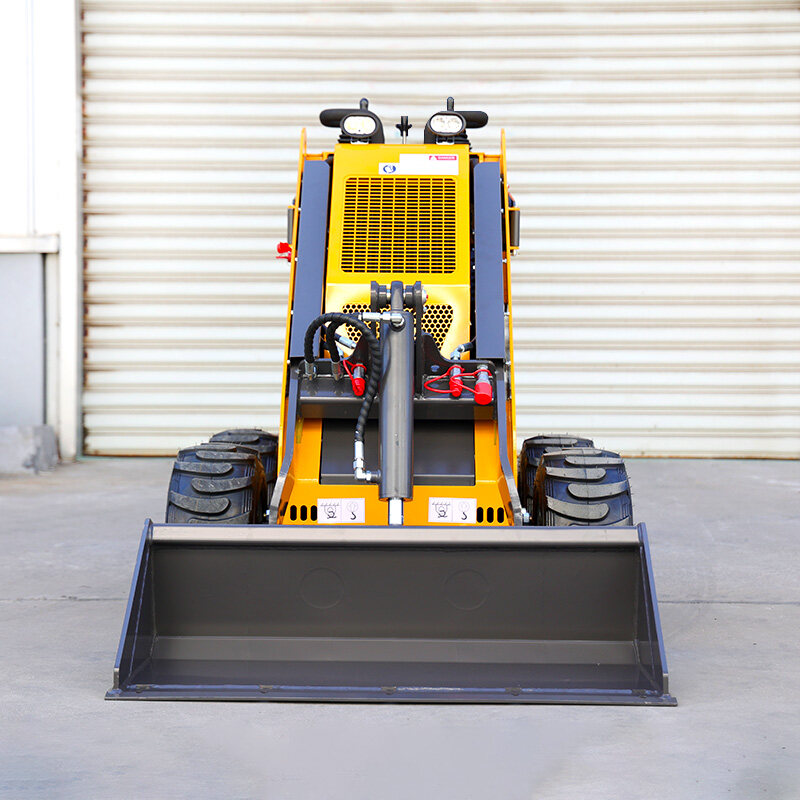

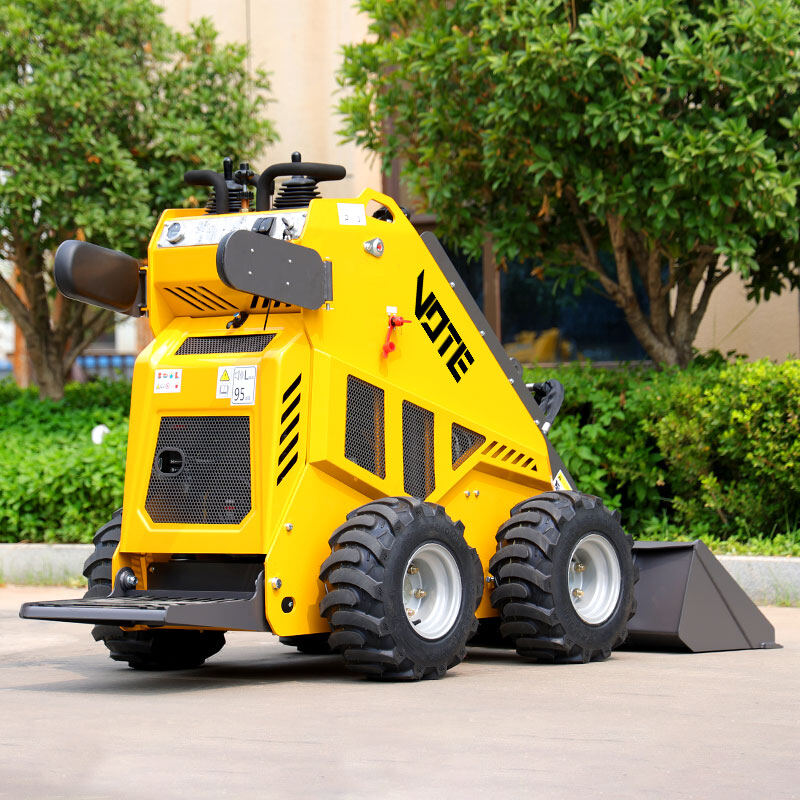

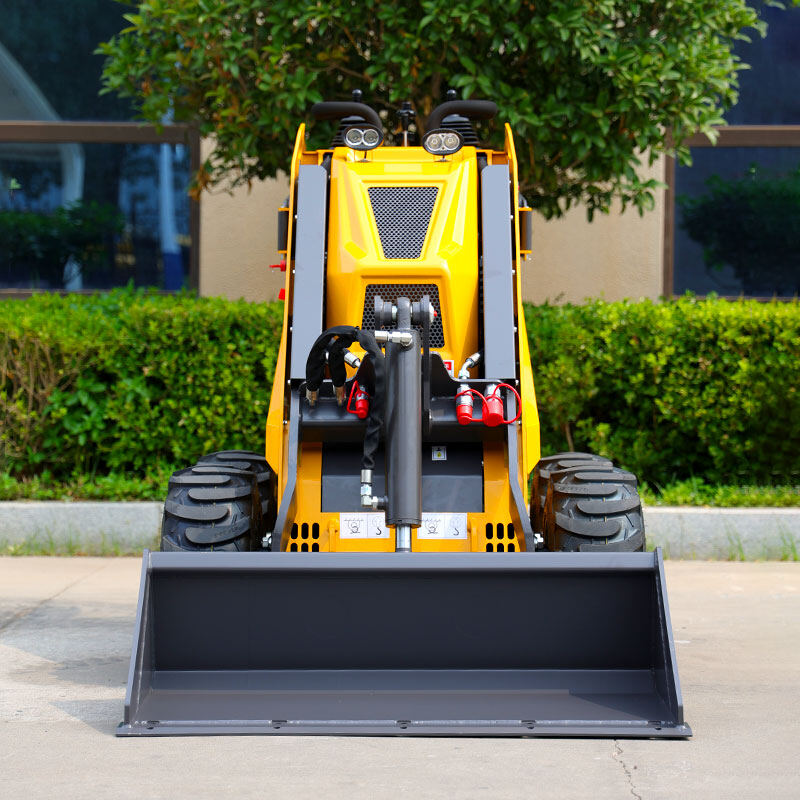

1.VTH-360W-Mini Skid Steer Loader2.VTH-360W-Mini Skid Steer Loader3.VTH-360W-Mini Skid Steer Loader4.VTH-360W-Mini Skid Steer Loader5.VTH-360W-Mini Skid Steer Loader
1.VTH-360W-Mini Skid Steer Loader2.VTH-360W-Mini Skid Steer Loader3.VTH-360W-Mini Skid Steer Loader4.VTH-360W-Mini Skid Steer Loader5.VTH-360W-Mini Skid Steer Loader
Mini Skid Steer Loader
  • VTH-360W
  • Rated loading weight
    238kg
  • Bucket capacity
    0.13m³
  • Engine
    briggs&stratton/rato/koop
  • Dimension
    2110*1050*1344mm
   Request Quote
Mini Excavator
Forklift
Loader
Mini Dumper
Self Loading Concrete Mixer
Product Parameters
Characteristic
Rated loading weight 238 kg
Bucket capacity 0.13 m³
Rated pressure 17 Mpa
Fuel tank 6.6L / 6.7L / 5.5L
Engine oil 1.1L / 1.1L / 1.65L
Hydraulic oil tank 20L
Engine
Engine model Briggs&Stratton 25T2 / Rato R420 / Koop 192F
Engine type Gasoline / Gasoline / Diesel
Output power 13.5HP(3600rpm) / 15HP(3600rpm) / 11.7HP(3600rpm)
Fuel consumption ≤3.8L/h  /  ≤4.2L/h  /  ≤2.3L/h
Operating weight 690kg / 700kg / 715kg
Startup method Electric start
Performance
Dimension 2110*1050*1344 mm
Max.lifting force 600 kg
Working speed 0-5 km/h
Gradeability 30%
Lifting time 3.6s
Bucket lowering time 2.5s
Product Details
VOTEBucket
VOTELighting
VOTEHydraulic system
VOTERubber tires
VOTEHeat sink
VOTEOperating platform
Accessories
AugerAugerDig StraightDig StraightStump BreakerStump BreakerRotary PlowRotary PlowCleanerCleanerSnow PlowSnow PlowTrencherTrencherPallet ForkPallet ForkHammerHammerGrappleGrapple
our Advantages
  • companyName
  • SUPPORT CUSTOMIZATIONLogo, color, accessories, etc.

    We can provide you with exclusive customized services and produce the products you want according to your requirements, including but not limited to Logo customization, color customization,and accessories customization.

  • companyName
  • WIDENED PEDALSMore comfortable and safer.

    The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

  • companyName
  • ONE-STOP SERVICEDelivery to your door, convenient and fast.

    The establishment of multiple overseas warehouses (Europe and North America) allows you to enjoy door-to-door delivery service without leaving your home, which is convenient, fast and efficient.

  • companyName
  • AFTER-SALES SERVICE TEAM7*24 hours online one-to-one service.

    The enthusiastic and professional after-sales service team is online 24 hours a day, 7 days a week, to provide you with one-to-one service and solve your worries.

Applicable scenarios VTH-360W Mini Skid Steer Loader
The biggest feature of the Vote skid steer loader is its small size and ability to turn on the spot; it can quickly replace or attach various working devices at the work site. Since its minimum turning radius is less than half of that of an articulated loader of the same level, it is particularly suitable for operations in narrow places such as urban infrastructure, roads or construction sites, factory workshops, warehouses, docks, ship decks and even cabins.
Customer Reviews
  • From the United States
    surprised by the strength of the machine it can push a lot of weight around excellent for removing snow from my street.
  • From Canada
    The salesperson was very patient and helped me solve my questions. I am very satisfied with the machine.
  • From Guam
    Received my equipment in good shape and quailty of skid and attachments very pleased.
  • From New Zealand
    Thank you very much. The skid steer loader has been received. I am very satisfied with it. It has many functions. I am really happy. Nice to work with you.
